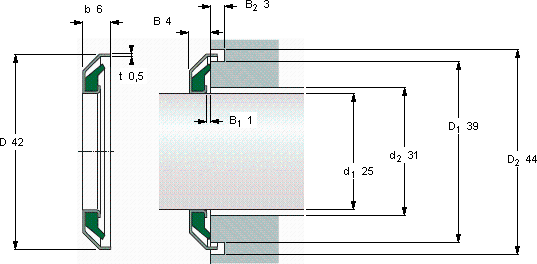

MVR axial shaft seals, MVR2 设计 | |||||||||||
尺寸 | 型号 | ||||||||||
特定负荷 | Case outer | Housing | Clearance | Total seal | Case groove | Seal counterface | Case groove diameter | Metal case | |||
diameter | width | case width | diameter | hole | inside | outside | thickness | ||||
d1 | D | B | B1 | b | B2 | d2 | D1 | D2 | t | ||
最大 | |||||||||||
mm | - | ||||||||||
25 | 42 | 4 | 1 | 6 | 3 | 31 | 39 | 44 | 0,5 | CR MVR2-25 |
