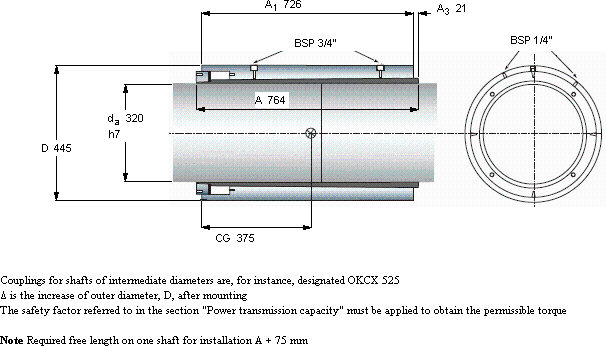

| OK couplings, OKCX shaft couplings | ||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||
| 轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | |||||
| da | D | A | A1 | Δ | CG | of inertia | 最大 | |||
| mm | kg | kgm2 | kNm | - | ||||||
| 320 | 445 | 764 | 726 | 0,57 | 375 | 419 | 15,7 | 1070 | OKCX 320 | |
