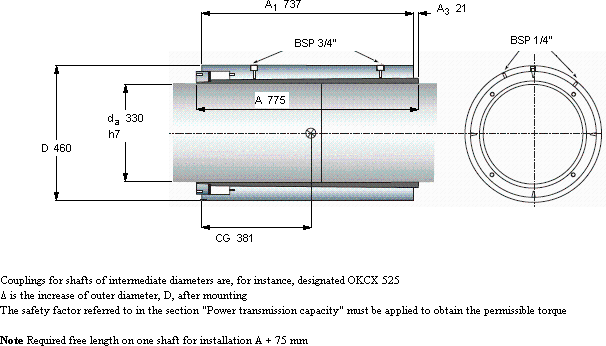

| OK couplings, OKCX shaft couplings | ||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||
| 轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | |||||
| da | D | A | A1 | Δ | CG | of inertia | 最大 | |||
| mm | kg | kgm2 | kNm | - | ||||||
| 330 | 460 | 775 | 737 | 0,59 | 381 | 456 | 18,2 | 1170 | OKCX 330 | |
