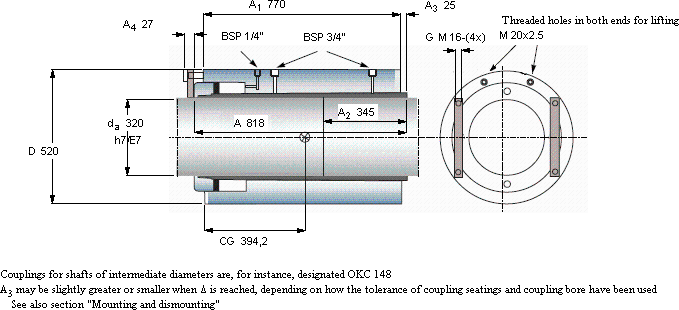

| OK couplings, OKC shaft couplings | |||||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||||||
| 轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | ||||||||
| da | D | A | A1 | A2 | A3 | A4 | Δ | CG | of inertia | 最大 | |||
| mm | kg | kgm2 | kNm | - | |||||||||
| 320 | 520 | 818 | 770 | 345 | 25 | 27 | 0,5 | 394,2 | 790 | 363 | 852 | OKC 320 | |
