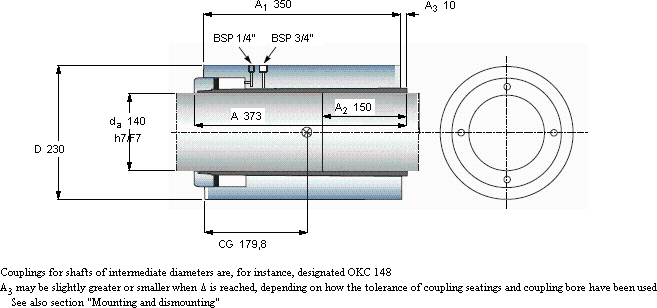

OK couplings, OKC shaft couplings | |||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||||||
轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | ||||||||
da | D | A | A1 | A2 | A3 | A4 | Δ | CG | of inertia | 最大 | |||
mm | kg | kgm2 | kNm | - | |||||||||
140 | 230 | 373 | 350 | 150 | 10 | - | 0,23 | 179,8 | 71 | 0,6 | 71,3 | OKC 140 |
