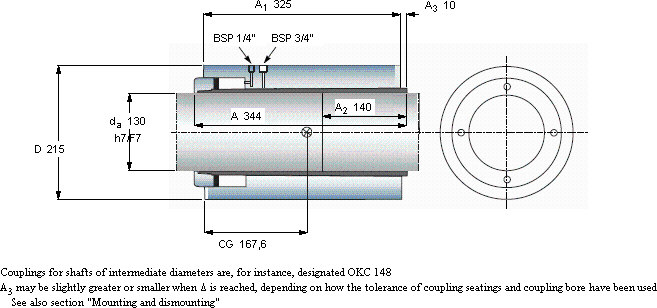

| OK couplings, OKC shaft couplings | |||||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||||||
| 轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | ||||||||
| da | D | A | A1 | A2 | A3 | A4 | Δ | CG | of inertia | 最大 | |||
| mm | kg | kgm2 | kNm | - | |||||||||
| 130 | 215 | 344 | 325 | 140 | 10 | - | 0,21 | 167,6 | 58 | 0,5 | 57,1 | OKC 130 | |
