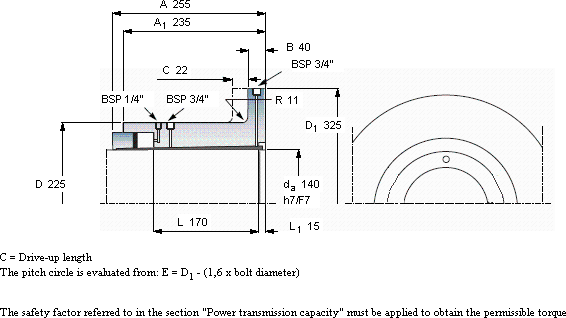

OK couplings, OKF flange couplings | ||||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||||||
轴 | 尺寸 | 体积 | Torque | 型号 | Suitable | |||||||||
最大 | Supergrip | |||||||||||||
da | D | D1 | A | A1 | B | R | L | L1 | C | bolt size | ||||
mm | kg | kNm | - | - | ||||||||||
140 | 225 | 325 | 255 | 235 | 40 | 11 | 170 | 15 | 22 | 56 | 71,3 | OKF 140 | - |
