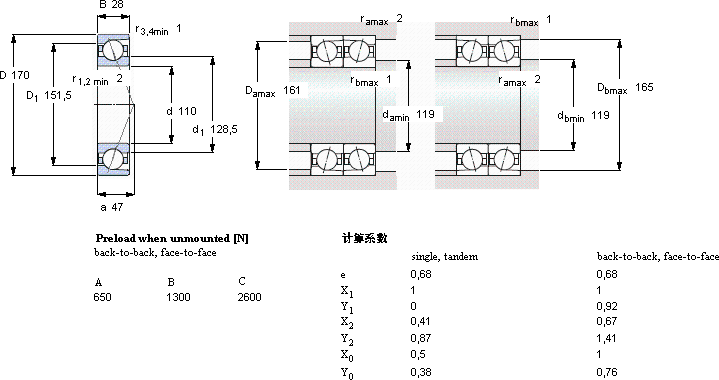

SKF7022ACD/P4A轴承详细参数
发布时间:2026-10-12| 角接触球轴承, 精密, ACD, contact angle 25° | |||||||||||
 | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
| |||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
| |||||||||||
| 110 | 170 | 28 | 104 | 104 | 3,75 | 7000 | 11000 | 1,95 | 7022 ACD/P4A | - | |
SKF7022ACD/P4A超精密角接触球轴承P4级供应商
- 八零动力专业销售7022ACD/P4A超精密角接触球轴承P4级，库存SKF7022ACD/P4A大量现货，与SKF合作，咨询热线：022-58519723
- SKF7022ACD/P4A它的滚动体分布均匀，运转平稳无振动 它的密封性能，减少了润滑剂的泄漏 轴承的耐用性极佳，为设备的长期稳定运行提供了保障机械的心脏就是选择高效与可靠它虽小，却是工业革命的基石 ,八零动力SKF超精密角接触球轴承P4级品种全，价格优，质量有保证！
