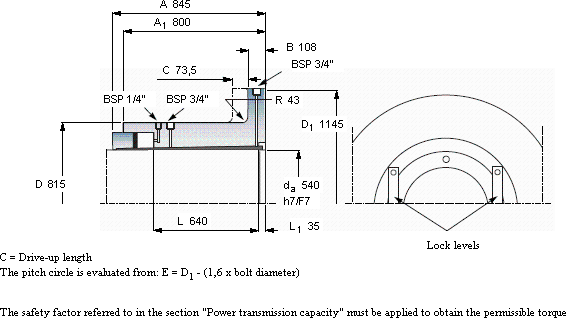

| OK couplings, OKF flange couplings | ||||||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||||||
| 轴 | 尺寸 | 体积 | Torque | 型号 | Suitable | |||||||||
| 最大 | Supergrip | |||||||||||||
| da | D | D1 | A | A1 | B | R | L | L1 | C | bolt size | ||||
| mm | kg | kNm | - | - | ||||||||||
| 540 | 815 | 1145 | 845 | 800 | 108 | 43 | 640 | 35 | 73,5 | 2190 | 4100 | OKF 540 | OKBS 80 | |
