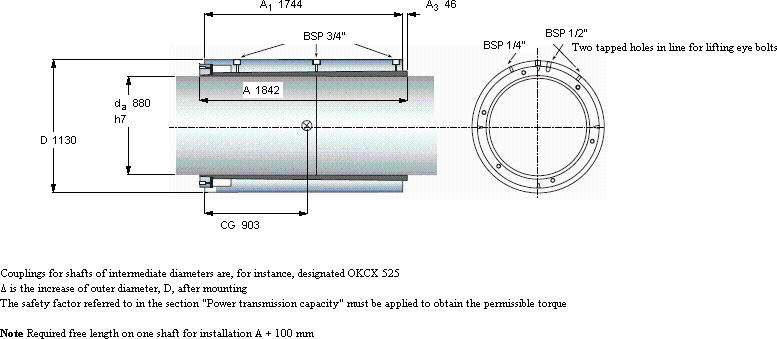

OK couplings, OKCX shaft couplings | ||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||
轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | |||||
da | D | A | A1 | Δ | CG | of inertia | 最大 | |||
mm | kg | kgm2 | kNm | - | ||||||
880 | 1130 | 1842 | 1744 | 2,01 | 903 | 5289 | 1353,5 | 22100 | OKCX 880 |
