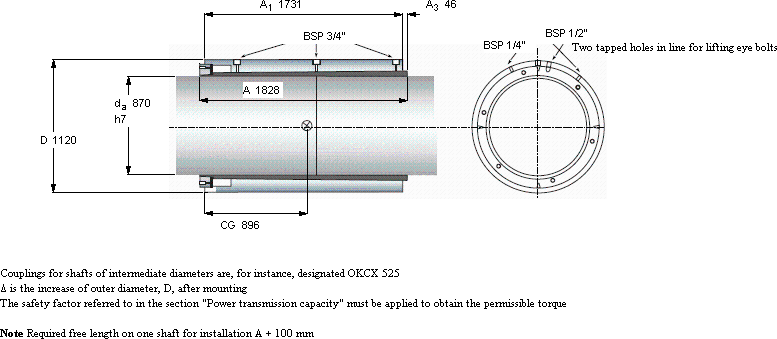

OK couplings, OKCX shaft couplings | ||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||
轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | |||||
da | D | A | A1 | Δ | CG | of inertia | 最大 | |||
mm | kg | kgm2 | kNm | - | ||||||
870 | 1120 | 1828 | 1731 | 1,96 | 896 | 5198 | 1304,3 | 21400 | OKCX 870 |
