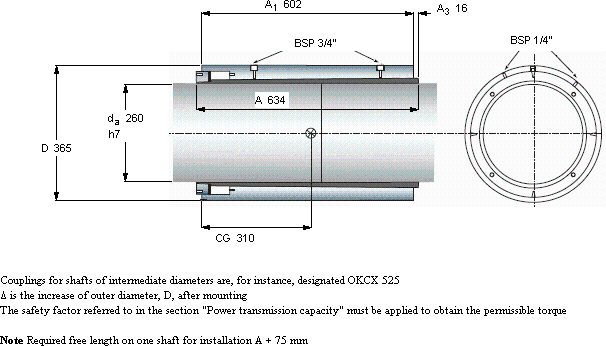

OK couplings, OKCX shaft couplings | ||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||
![]() | ||||||||||
轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | |||||
da | D | A | A1 | Δ | CG | of inertia | 最大 | |||
![]() | ||||||||||
mm | kg | kgm2 | kNm | - | ||||||
![]() | ||||||||||
260 | 365 | 634 | 602 | 0,47 | 310 | 238 | 6 | 570 | OKCX 260 |
