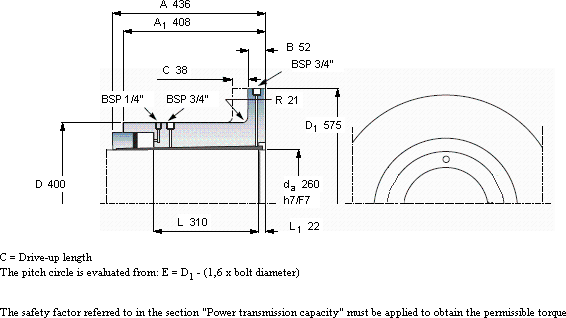

OK couplings, OKF flange couplings | ||||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||||||
![]() | ||||||||||||||
轴 | 尺寸 | 体积 | Torque | 型号 | Suitable | |||||||||
最大 | Supergrip | |||||||||||||
da | D | D1 | A | A1 | B | R | L | L1 | C | bolt size | ||||
![]() | ||||||||||||||
mm | kg | kNm | - | - | ||||||||||
![]() | ||||||||||||||
260 | 400 | 575 | 436 | 408 | 52 | 21 | 310 | 22 | 38 | 275 | 457 | OKF 260 | OKBS 40 |
