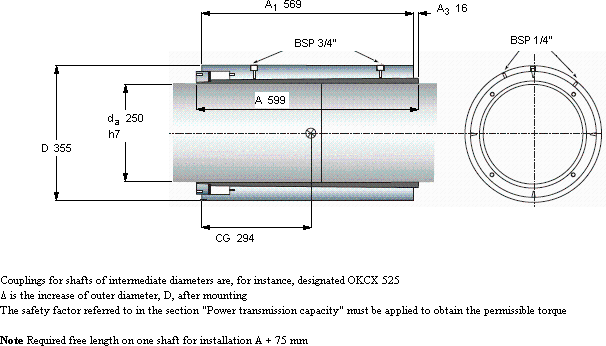

OK couplings, OKCX shaft couplings | ||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||
![]() | ||||||||||
轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | |||||
da | D | A | A1 | Δ | CG | of inertia | 最大 | |||
![]() | ||||||||||
mm | kg | kgm2 | kNm | - | ||||||
![]() | ||||||||||
250 | 355 | 599 | 569 | 0,44 | 294 | 218 | 5,1 | 507 | OKCX 250 |
