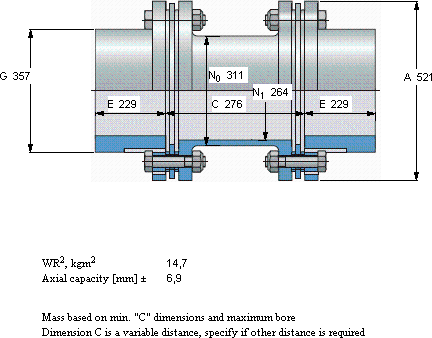

| Disc couplings, type KD, KD21 | ||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||
| 轴 | Torque | Speed | 体积 | 尺寸 | 型号 | |||||
| Continous | ||||||||||
| 最小 | 最大 | 最大 | 最大 | A | B | E | G | |||
| mm | kNm | r/min | kg | mm | - | |||||
| 115 | 273 | 170,63 | 4500 | 418 | 521 | - | 229 | 357 | KD21-705 | |
