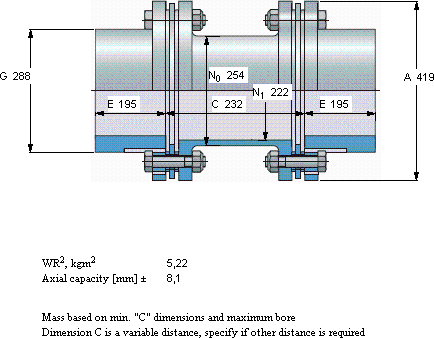

| Disc couplings, type KD, KD21 | ||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||
| 轴 | Torque | Speed | 体积 | 尺寸 | 型号 | |||||
| Continous | ||||||||||
| 最小 | 最大 | 最大 | 最大 | A | B | E | G | |||
| mm | kNm | r/min | kg | mm | - | |||||
| 105 | 216 | 74,6 | 5600 | 232 | 419 | - | 195 | 288 | KD21-604 | |
