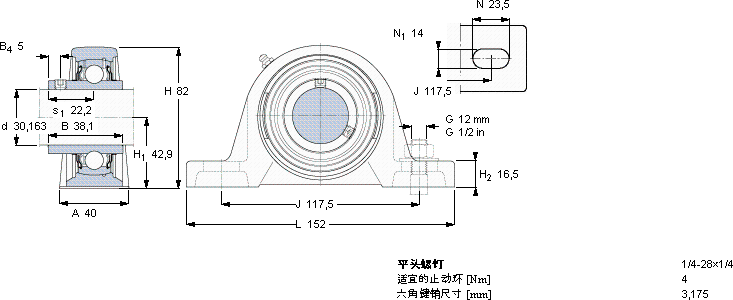

SKFSY1.3/16TF轴承详细参数
发布时间:2026-04-15| Y-型立式轴承座单元, 铸造轴承座，平头螺钉锁紧定, 英制轴承 | ||||||||||||
 | ||||||||||||
| 尺寸 | 基本负荷额定值 | 限制速度 | 质量 | 型号 | ||||||||
| 动态 | 静态 | 轴承单元 | 轴承座 | 轴承 | ||||||||
| d | A | H | H1 | L | C | C0 | 带轴公差 h6 | |||||
| ||||||||||||
| mm | kN | r/min | kg | - | ||||||||
| ||||||||||||
| 30,163 | 40 | 82 | 42,9 | 152 | 19,5 | 11,2 | 6300 | 1,18 | SY 1.3/16 TF | SY 506 U | YAR 206-103-2F | |
SKFSY1.3/16TFY-轴承座单元供应商
- 八零动力专业销售SY1.3/16TFY-轴承座单元，库存SKFSY1.3/16TF大量现货，与SKF合作，咨询热线：022-58519723
- SKFSY1.3/16TF持久转动以精湛工艺没有轴承，现代机械将寸步难行,轴承的选材精良，确保了其具有良好的耐磨性和抗腐蚀性引领转动新潮流,它的耐腐蚀性，减少了维护成本 ,八零动力SKFY-轴承座单元品种全，价格优，质量有保证！
