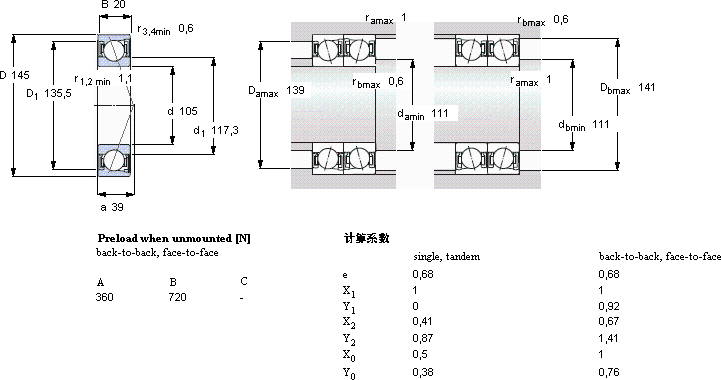

SKFS71921ACD/HCP4A轴承详细参数
发布时间:2026-10-12| 角接触球轴承, 精密, S .. ACD/HC, sealed, contact angle 25°, hybrid | |||||||||||
 | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
| |||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
| |||||||||||
| 105 | 145 | 20 | 57,2 | 65,5 | 2,5 | 9000 | - | 0,69 | S71921 ACD/HCP4A | - | |
SKFS71921ACD/HCP4A超精密角接触球轴承P4级供应商
- 八零动力专业销售S71921ACD/HCP4A超精密角接触球轴承P4级，库存SKFS71921ACD/HCP4A大量现货，与SKF合作，咨询热线：022-58519723
- SKFS71921ACD/HCP4A它的疲劳强度，确保了长期使用的可靠性 它的抗拉强度，让它经得起各种考验 它的润滑技术，减少了摩擦和磨损 以精湛工艺铸就稳定持久它在船舶工业中的应用，展现了它的耐腐蚀性 ,八零动力SKF超精密角接触球轴承P4级品种全，价格优，质量有保证！
