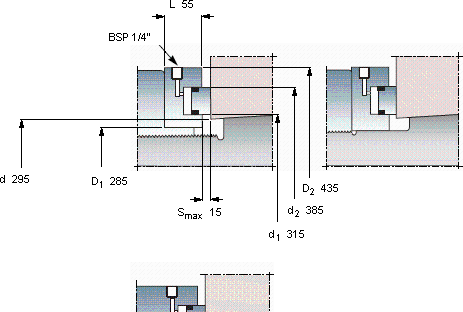

| OKTC and OKTH hydraulic rings and propeller nuts | ||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||
| 尺寸 | 体积 | Max force | 型号 | |||||||
| d | D1 | d1 | d2 | D2 | L | Smax | at 70 MPa | |||
| mm | kg | kN | - | |||||||
| 295 | 285 | 315 | 385 | 435 | 55 | 15 | 37 | 2730 | OKTC 285 | |
