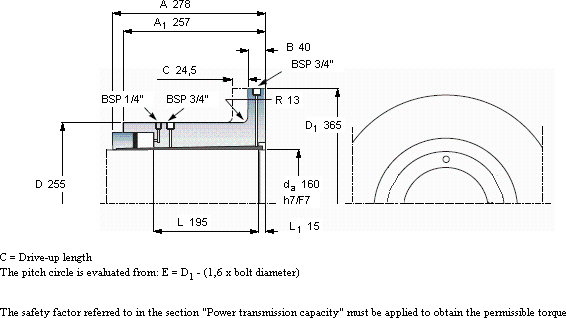

| OK couplings, OKF flange couplings | ||||||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||||||
| 轴 | 尺寸 | 体积 | Torque | 型号 | Suitable | |||||||||
| 最大 | Supergrip | |||||||||||||
| da | D | D1 | A | A1 | B | R | L | L1 | C | bolt size | ||||
| mm | kg | kNm | - | - | ||||||||||
| 160 | 255 | 365 | 278 | 257 | 40 | 13 | 195 | 15 | 24,5 | 77 | 107 | OKF 160 | - | |
