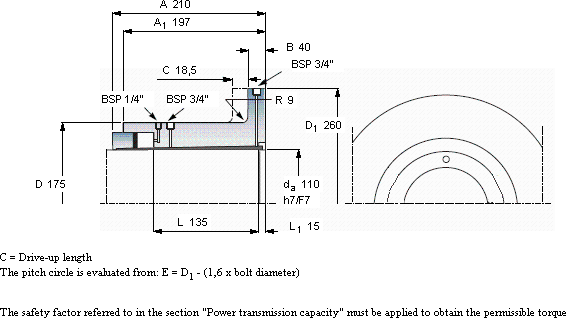

OK couplings, OKF flange couplings | ||||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||||||
轴 | 尺寸 | 体积 | Torque | 型号 | Suitable | |||||||||
最大 | Supergrip | |||||||||||||
da | D | D1 | A | A1 | B | R | L | L1 | C | bolt size | ||||
mm | kg | kNm | - | - | ||||||||||
110 | 175 | 260 | 210 | 197 | 40 | 9 | 135 | 15 | 18,5 | 29 | 34,6 | OKF 110 | - |
