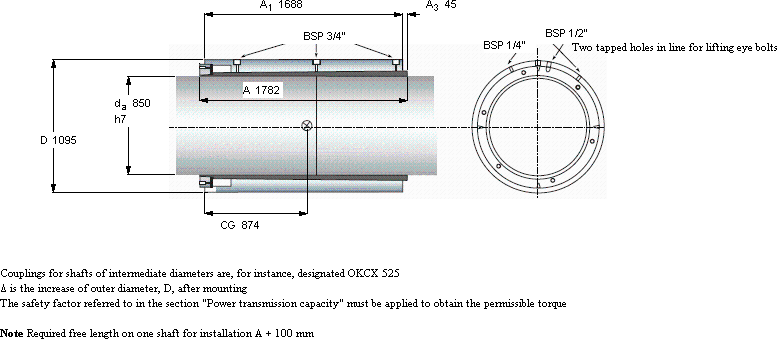

OK couplings, OKCX shaft couplings | ||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||
轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | |||||
da | D | A | A1 | Δ | CG | of inertia | 最大 | |||
mm | kg | kgm2 | kNm | - | ||||||
850 | 1095 | 1782 | 1688 | 1,92 | 874 | 4853 | 1163,4 | 19900 | OKCX 850 |
