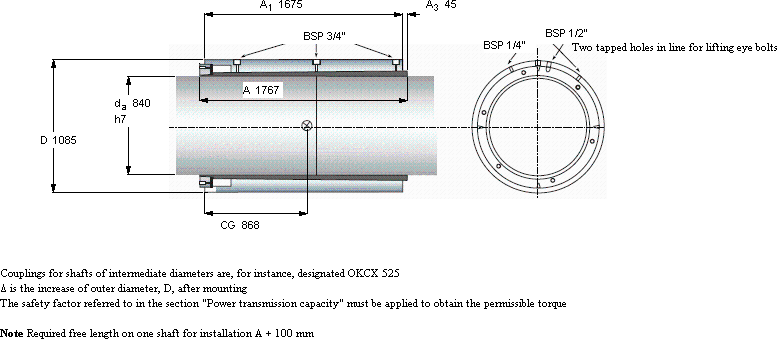

OK couplings, OKCX shaft couplings | ||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||
轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | |||||
da | D | A | A1 | Δ | CG | of inertia | 最大 | |||
mm | kg | kgm2 | kNm | - | ||||||
840 | 1085 | 1767 | 1675 | 1,87 | 868 | 4765 | 1119,3 | 19210 | OKCX 840 |
