OK couplings, OKC shaft couplings | |||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||||||
轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | ||||||||
da | D | A | A1 | A2 | A3 | A4 | Δ | CG | of inertia | 最大 | |||
mm | kg | kgm2 | kNm | - | |||||||||

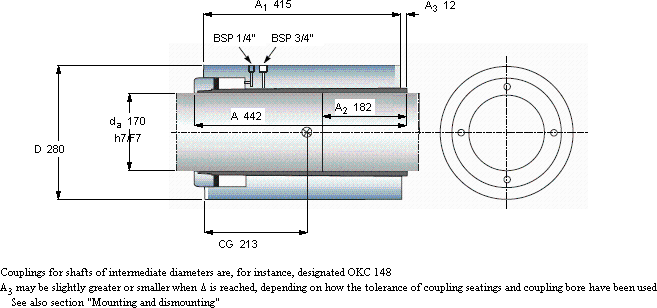

170 | 280 | 442 | 415 | 182 | 12 | - | 0,27 | 213 | 125 | 1,6 | 128 | OKC 170 |
