Gear couplings, types HCCE and HCRE, flexible/rigid, straight-cut teeth, type HCRE | |||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||||||
轴 | Torque | Speed | 体积 | 尺寸 | 型号 | ||||||||
Flexible half | Rigid half | Continous | Undrilled hubs | ||||||||||
最小 | 最大 | 最小 | 最大 | 最大 | 最大 | A | B | E | G | GR | |||
mm | kNm | r/min | kg | mm | - | ||||||||

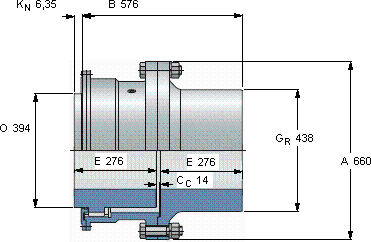

127 | 311 | 127 | 337 | 225,4 | 1625 | 889 | 660 | 576 | 276 | - | 438 | HCRE 090 R |
