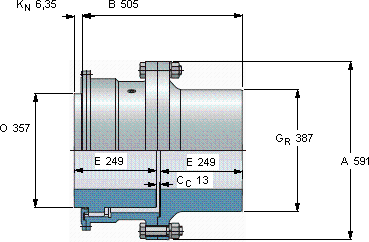

Gear couplings, types HCCE and HCRE, flexible/rigid, straight-cut teeth, type HCRE | |||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||||||
轴 | Torque | Speed | 体积 | 尺寸 | 型号 | ||||||||
Flexible half | Rigid half | Continous | Undrilled hubs | ||||||||||
最小 | 最大 | 最小 | 最大 | 最大 | 最大 | A | B | E | G | GR | |||
mm | kNm | r/min | kg | mm | - | ||||||||
127 | 279 | 127 | 292 | 158,7 | 1750 | 667 | 591 | 505 | 249 | - | 387 | HCRE 080 R |
