SKF7201ACD/HCP4A轴承详细参数
发布时间:2026-04-14| 角接触球轴承, 精密, ACD/HC, contact angle 25°, hybrid | |||||||||||
 | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||

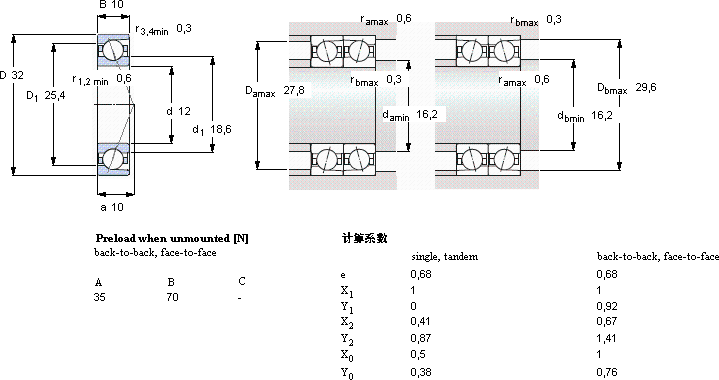

| d | D | B | C | C0 | Pu | ||||||
| |||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
| |||||||||||
| 12 | 32 | 10 | 5,72 | 2,75 | 0,104 | 56000 | 85000 | 0,032 | 7201 ACD/HCP4A | - | |
SKF7201ACD/HCP4A超精密角接触球轴承P4级供应商
- 八零动力专业销售7201ACD/HCP4A超精密角接触球轴承P4级，库存SKF7201ACD/HCP4A大量现货，与SKF合作，咨询热线：022-58519723
- SKF7201ACD/HCP4A坚固的结构稳定的性能它的抗剪切性能，确保了它的结构稳定性 它的多样化应用，展现了它的无限可能 轴承的精度和稳定性都达到了行业顶尖水平先进的制造工艺，让这款轴承的性能更加稳定可靠精准承载,八零动力SKF超精密角接触球轴承P4级品种全，价格优，质量有保证！
