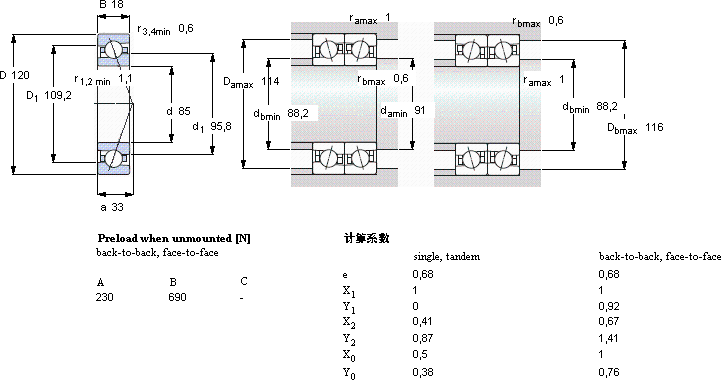

SKF71917ACE/HCP4A轴承详细参数
发布时间:2026-08-28| 角接触球轴承, 精密, ACE/HC, contact angle 25°, hybrid | |||||||||||
 | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
| |||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
| |||||||||||
| 85 | 120 | 18 | 27,6 | 20,4 | 0,85 | 15000 | 24000 | 0,44 | 71917 ACE/HCP4A | - | |
SKF71917ACE/HCP4A超精密角接触球轴承P4级供应商
- 八零动力专业销售71917ACE/HCP4A超精密角接触球轴承P4级，库存SKF71917ACE/HCP4A大量现货，与SKF合作，咨询热线：022-58519723
- SKF71917ACE/HCP4A零误差起步高品质的轴承，在复杂工况下也能展现出卓越的性能它的抗冲击性能，让它经得起各种考验 机械的心脏制造工艺精湛，使得这款轴承在运转时更加顺畅平稳高精度的轴承，为设备的稳定运行提供了坚实保障,八零动力SKF超精密角接触球轴承P4级品种全，价格优，质量有保证！
