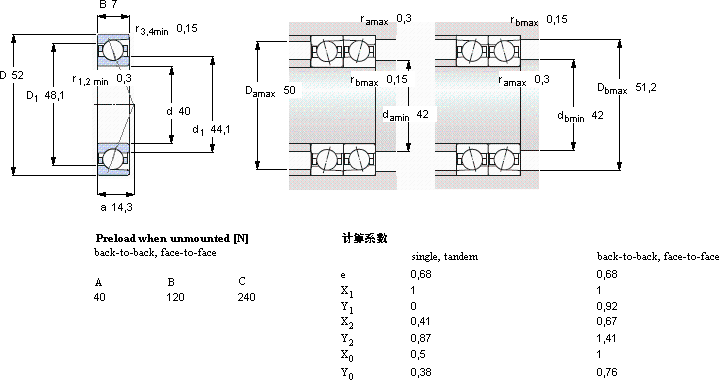

SKF71808ACD/HCP4轴承详细参数
发布时间:2026-07-14| 角接触球轴承, 精密, ACD, contact angle 25°, hybrid, super-precision | |||||||||||
 | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
| |||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
| |||||||||||
| 40 | 52 | 7 | 4,49 | 4,55 | 0,196 | 28000 | 43000 | 0,029 | 71808 ACD/HCP4 | SEA40 /NS 7CE3 | |
SKF71808ACD/HCP4高精密角接触球轴承P4级供应商
- 八零动力专业销售71808ACD/HCP4高精密角接触球轴承P4级，库存SKF71808ACD/HCP4大量现货，与SKF合作，咨询热线：022-58519723
- SKF71808ACD/HCP4品质永相随引领行业速度,我们的轴承始终稳如磐石它的抗拉强度，让它经得起各种考验 它的低噪音设计，减少了对环境的噪音污染 为您的机械提供持久动力,以精湛工艺,八零动力SKF高精密角接触球轴承P4级品种全，价格优，质量有保证！
