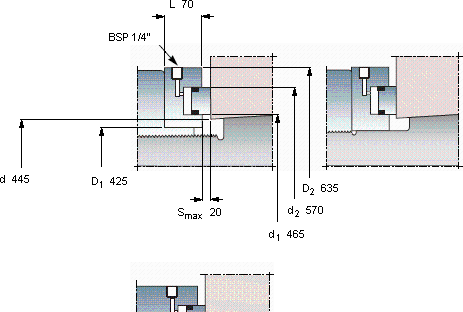

OKTC and OKTH hydraulic rings and propeller nuts | ||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||
![]() | ||||||||||
尺寸 | 体积 | Max force | 型号 | |||||||
d | D1 | d1 | d2 | D2 | L | Smax | at 70 MPa | |||
![]() | ||||||||||
mm | kg | kN | - | |||||||
![]() | ||||||||||
445 | 425 | 465 | 570 | 635 | 70 | 20 | 96 | 5890 | OKTC 425 |
