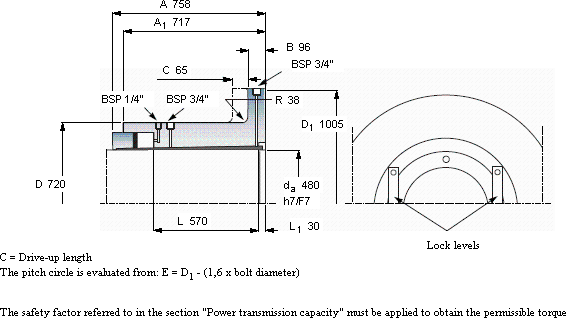

OK couplings, OKF flange couplings | ||||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||||||
轴 | 尺寸 | 体积 | Torque | 型号 | Suitable | |||||||||
最大 | Supergrip | |||||||||||||
da | D | D1 | A | A1 | B | R | L | L1 | C | bolt size | ||||
mm | kg | kNm | - | - | ||||||||||
480 | 720 | 1005 | 758 | 717 | 96 | 38 | 570 | 30 | 65 | 1510 | 2880 | OKF 480 | OKBS 70 |
