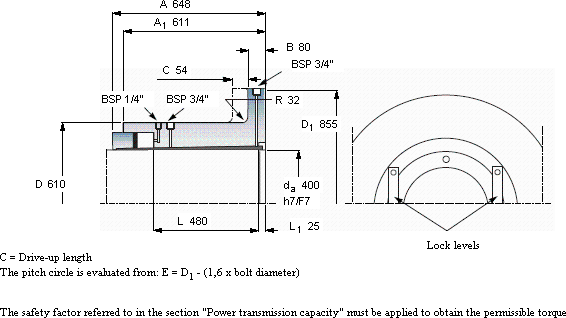

| OK couplings, OKF flange couplings | ||||||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||||||
| 轴 | 尺寸 | 体积 | Torque | 型号 | Suitable | |||||||||
| 最大 | Supergrip | |||||||||||||
| da | D | D1 | A | A1 | B | R | L | L1 | C | bolt size | ||||
| mm | kg | kNm | - | - | ||||||||||
| 400 | 610 | 855 | 648 | 611 | 80 | 32 | 480 | 25 | 54 | 930 | 1670 | OKF 400 | OKBS 60 | |
