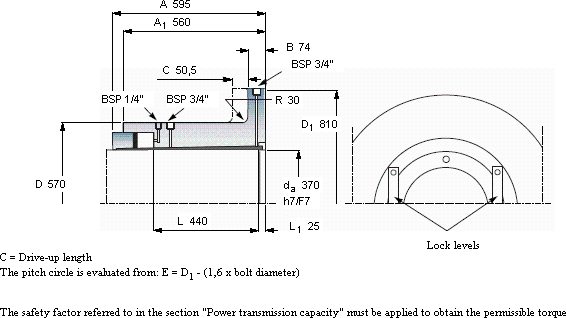

OK couplings, OKF flange couplings | ||||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||||||
轴 | 尺寸 | 体积 | Torque | 型号 | Suitable | |||||||||
最大 | Supergrip | |||||||||||||
da | D | D1 | A | A1 | B | R | L | L1 | C | bolt size | ||||
mm | kg | kNm | - | - | ||||||||||
370 | 570 | 810 | 595 | 560 | 74 | 30 | 440 | 25 | 50,5 | 770 | 1320 | OKF 370 | OKBS 60 |
