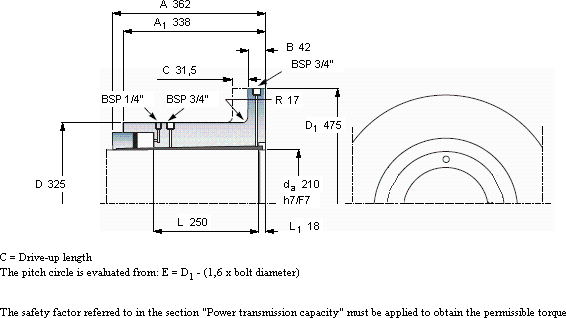

| OK couplings, OKF flange couplings | ||||||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||||||
| 轴 | 尺寸 | 体积 | Torque | 型号 | Suitable | |||||||||
| 最大 | Supergrip | |||||||||||||
| da | D | D1 | A | A1 | B | R | L | L1 | C | bolt size | ||||
| mm | kg | kNm | - | - | ||||||||||
| 210 | 325 | 475 | 362 | 338 | 42 | 17 | 250 | 18 | 31,5 | 153 | 241 | OKF 210 | - | |
