OK couplings, OKF flange couplings | ||||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||||||
轴 | 尺寸 | 体积 | Torque | 型号 | Suitable | |||||||||
最大 | Supergrip | |||||||||||||

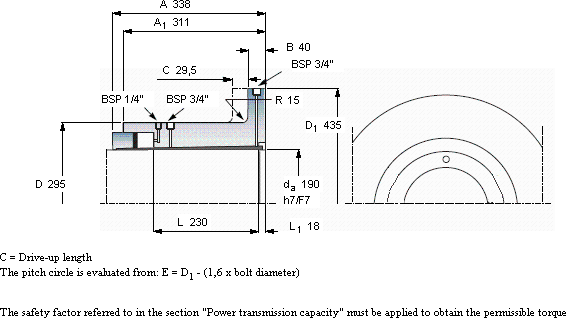

da | D | D1 | A | A1 | B | R | L | L1 | C | bolt size | ||||
mm | kg | kNm | - | - | ||||||||||
190 | 295 | 435 | 338 | 311 | 40 | 15 | 230 | 18 | 29,5 | 118 | 179 | OKF 190 | - |
