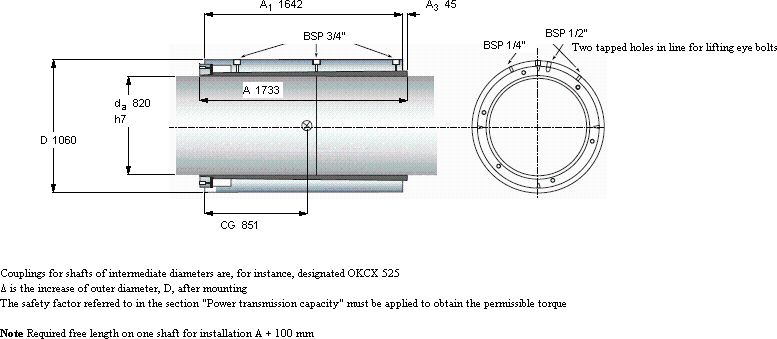

OK couplings, OKCX shaft couplings | ||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||
轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | |||||
da | D | A | A1 | Δ | CG | of inertia | 最大 | |||
mm | kg | kgm2 | kNm | - | ||||||
820 | 1060 | 1733 | 1642 | 1,82 | 851 | 4470 | 1001,7 | 17900 | OKCX 820 |
