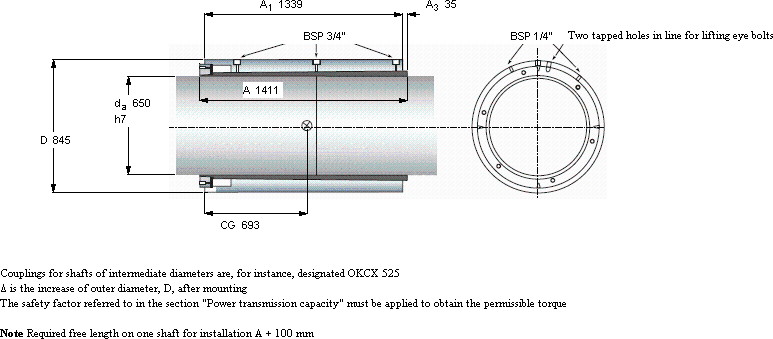

| OK couplings, OKCX shaft couplings | ||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||
| 轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | |||||
| da | D | A | A1 | Δ | CG | of inertia | 最大 | |||
| mm | kg | kgm2 | kNm | - | ||||||
| 650 | 845 | 1411 | 1339 | 1,42 | 693 | 2358 | 334,4 | 8900 | OKCX 650 | |
