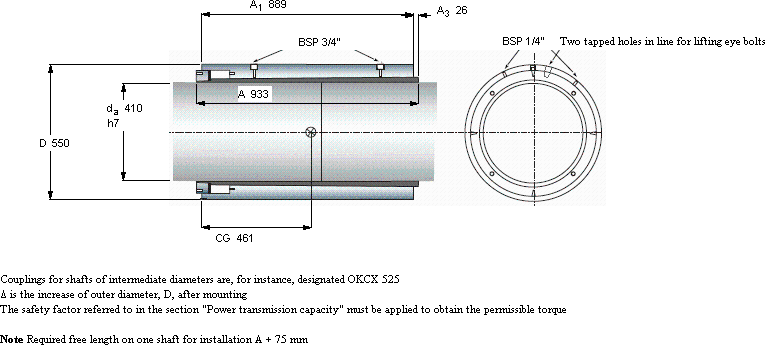

| OK couplings, OKCX shaft couplings | ||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||
| 轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | |||||
| da | D | A | A1 | Δ | CG | of inertia | 最大 | |||
| mm | kg | kgm2 | kNm | - | ||||||
| 410 | 550 | 933 | 889 | 0,84 | 461 | 720 | 42,3 | 2240 | OKCX 410 | |
