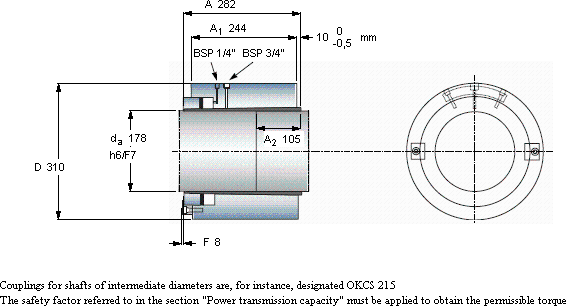

| OK couplings, OKCS shaft couplings | |||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||
| 轴 | 尺寸 | 体积 | Torque | 型号 | |||||
| da | D | A | A1 | A2 | F | 最大 | |||
| mm | kg | kNm | - | ||||||
| 178 | 310 | 282 | 244 | 105 | 8 | 98 | 65 | OKCS 178 | |
