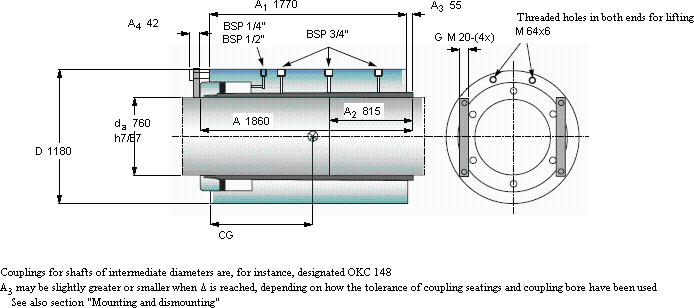

OK couplings, OKC shaft couplings | |||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||||||
轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | ||||||||
da | D | A | A1 | A2 | A3 | A4 | Δ | CG | of inertia | 最大 | |||
mm | kg | kgm2 | kNm | - | |||||||||
760 | 1180 | 1860 | 1770 | 815 | 55 | 42 | 1,32 | - | 8660 | - | 11400 | OKC 760 |
