OK couplings, OKC shaft couplings | |||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||||||
轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | ||||||||
da | D | A | A1 | A2 | A3 | A4 | Δ | CG | of inertia | 最大 | |||
mm | kg | kgm2 | kNm | - | |||||||||

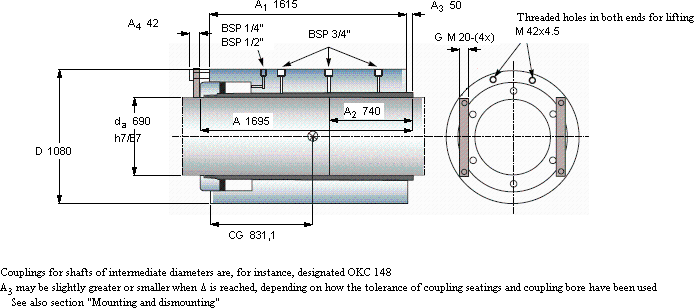

690 | 1080 | 1695 | 1615 | 740 | 50 | 42 | 1,18 | 831,1 | 6670 | 1380,3 | 8540 | OKC 690 |
