OK couplings, OKC shaft couplings | |||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||||||
轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | ||||||||
da | D | A | A1 | A2 | A3 | A4 | Δ | CG | of inertia | 最大 | |||
mm | kg | kgm2 | kNm | - | |||||||||

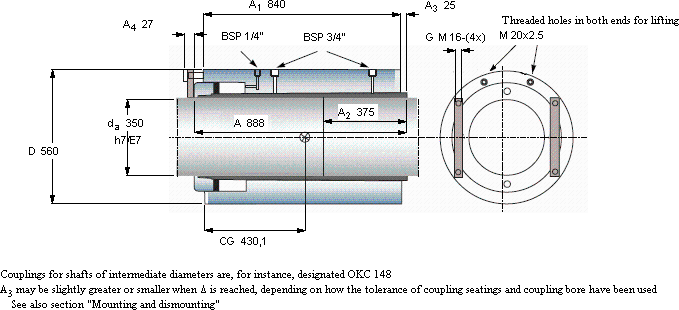

350 | 560 | 888 | 840 | 375 | 25 | 27 | 0,57 | 430,1 | 980 | 52,8 | 1120 | OKC 350 |
