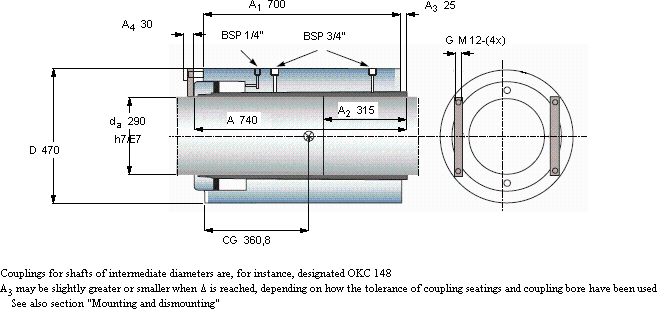

OK couplings, OKC shaft couplings | |||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||||||
轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | ||||||||
da | D | A | A1 | A2 | A3 | A4 | Δ | CG | of inertia | 最大 | |||
mm | kg | kgm2 | kNm | - | |||||||||
290 | 470 | 740 | 700 | 315 | 25 | 30 | 0,46 | 360,8 | 580 | 21,9 | 634 | OKC 290 |
