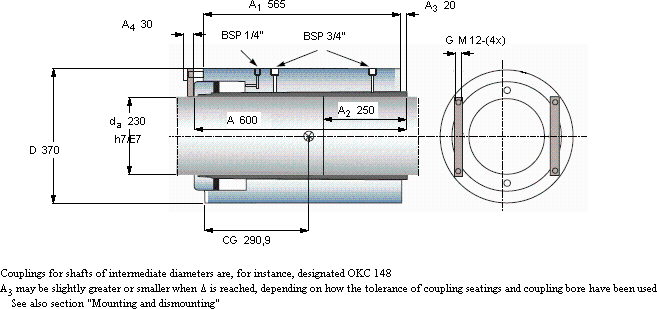

| OK couplings, OKC shaft couplings | |||||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||||||
| 轴 | 尺寸 | 体积 | Mass moment | Torque | 型号 | ||||||||
| da | D | A | A1 | A2 | A3 | A4 | Δ | CG | of inertia | 最大 | |||
| mm | kg | kgm2 | kNm | - | |||||||||
| 230 | 370 | 600 | 565 | 250 | 20 | 30 | 0,38 | 290,9 | 285 | 6,7 | 317 | OKC 230 | |
