SKFOKBS78轴承详细参数

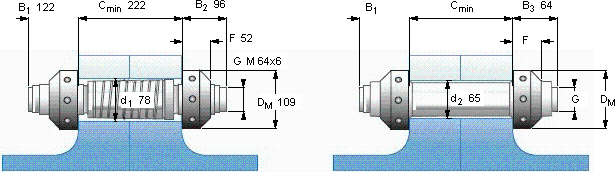

发布时间:2026-09-15| Supergrip bolts | ||||||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | ||||||||||||||
 | ||||||||||||||
| Supergrip bolt | Tie bolt | Mounting tools | ||||||||||||
| 尺寸 | 螺纹尺寸 | 体积 | 型号 | 尺寸 | 体积 | 尺寸 | ||||||||
| d1 | Cmin | B1 | B2 | F | DM | G | d2 | B3 | DD | H1 | ||||
| ||||||||||||||
| mm | - | kg | - | mm | kg | mm | ||||||||
| ||||||||||||||
| 78 | 222 | 122 | 96 | 52 | 109 | M 64x6 | 17,2 | OKBS 78 | 65 | 64 | 14,9 | 178 | 231 | |
SKFOKBS78Supergrip bolts供应商
- 八零动力专业销售OKBS78Supergrip bolts，库存SKFOKBS78大量现货，与SKF合作，咨询热线：022-58519723
- SKFOKBS78它的可靠性，赢得了无数用户的信赖 设计独特的轴承，不仅性能优越，还具有很高的性价比它在航空航天领域的应用，展现了它的高可靠性 制造工艺精湛，使得这款轴承的精度和稳定性都非常出色顺滑无声它的抗剪切性能，确保了它的结构稳定性 ,八零动力SKFSupergrip bolts品种全，价格优，质量有保证！
