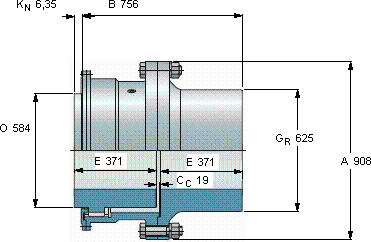

Gear couplings, types HCCE and HCRE, flexible/rigid, straight-cut teeth, type HCRE | |||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||||||
轴 | Torque | Speed | 体积 | 尺寸 | 型号 | ||||||||
Flexible half | Rigid half | Continous | Undrilled hubs | ||||||||||
最小 | 最大 | 最小 | 最大 | 最大 | 最大 | A | B | E | G | GR | |||
mm | kNm | r/min | kg | mm | - | ||||||||
203 | 457 | 203 | 483 | 642,7 | 1125 | 2486 | 908 | 756 | 371 | - | 625 | HCRE 130 R |
