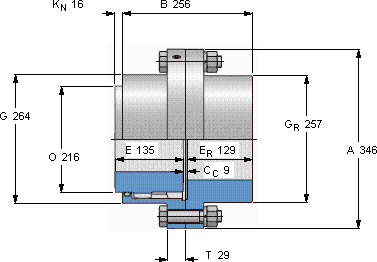

Gear couplings, types HCCE and HCRE, flexible/rigid, crowned teeth, type HCRE | |||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||||||
轴 | Torque | Speed | 体积 | 尺寸 | 型号 | ||||||||
Flexible half | Rigid half | Continous | Undrilled hubs | ||||||||||
最小 | 最大 | 最小 | 最大 | 最大 | 最大 | A | B | E | G | GR | |||
mm | kNm | r/min | kg | mm | - | ||||||||
80 | 166 | 84 | 197 | 36,3 | 3200 | 124 | 346 | 256 | 135 | 264 | 257 | HCRE 045 R |
