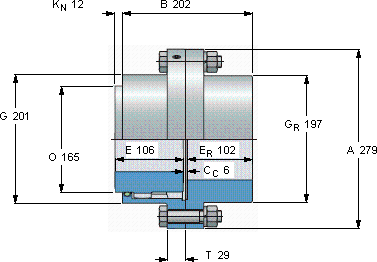

Gear couplings, types HCCE and HCRE, flexible/rigid, crowned teeth, type HCRE | |||||||||||||
This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||||||
轴 | Torque | Speed | 体积 | 尺寸 | 型号 | ||||||||
Flexible half | Rigid half | Continous | Undrilled hubs | ||||||||||
最小 | 最大 | 最小 | 最大 | 最大 | 最大 | A | B | E | G | GR | |||
mm | kNm | r/min | kg | mm | - | ||||||||
47 | 127 | 62 | 152 | 16,9 | 3900 | 64 | 279 | 202 | 106 | 201 | 197 | HCRE 035 R |
