SKFHCRE025R轴承详细参数
发布时间:2026-07-29| Gear couplings, types HCCE and HCRE, flexible/rigid, crowned teeth, type HCRE | |||||||||||||
| This table should be seen as a guide, contact SKF if the required size is not listed | |||||||||||||
 | |||||||||||||
| 轴 | Torque | Speed | 体积 | 尺寸 | 型号 | ||||||||
| Flexible half | Rigid half | Continous | Undrilled hubs | ||||||||||

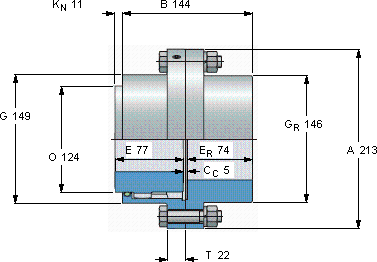

| 最小 | 最大 | 最小 | 最大 | 最大 | 最大 | A | B | E | G | GR | |||
| |||||||||||||
| mm | kNm | r/min | kg | mm | - | ||||||||
| |||||||||||||
| 28 | 95 | 36 | 110 | 6,5 | 5000 | 26 | 213 | 144 | 77 | 149 | 146 | HCRE 025 R | |
SKFHCRE025RGear couplings供应商
- 八零动力专业销售HCRE025RGear couplings，库存SKFHCRE025R大量现货，与SKF合作，咨询热线：022-58519723
- SKFHCRE025R以精湛工艺坚固的结构稳定的性能它的几何精度，让机械运转分毫不差 这轴承的设计巧妙，充分考虑了设备的运行需求和维护便利性轴承的稳定性和可靠性表现出色，赢得了用户的高度认可先进的制造工艺，让这款轴承的性能更加稳定可靠,八零动力SKFGear couplings品种全，价格优，质量有保证！
