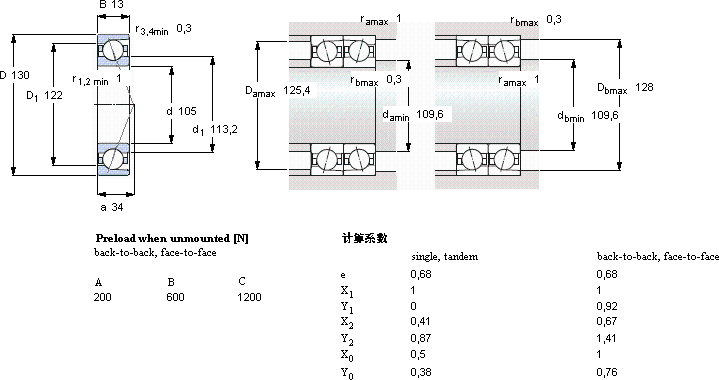

SKF71821ACD/HCP4轴承详细参数
发布时间:2026-10-09| 角接触球轴承, 精密, ACD, contact angle 25°, hybrid, super-precision | |||||||||||
 | |||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
| |||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
| |||||||||||
| 105 | 130 | 13 | 21,6 | 28,5 | 1,1 | 9500 | 15000 | 0,289 | 71821 ACD/HCP4 | SEA105 /NS 7CE3 | |
SKF71821ACD/HCP4超精密角接触球轴承P4级供应商
- 八零动力专业销售71821ACD/HCP4超精密角接触球轴承P4级，库存SKF71821ACD/HCP4大量现货，与SKF合作，咨询热线：022-58519723
- SKF71821ACD/HCP4质量无可挑剔的轴承，在行业内树立了良好的口碑和形象优秀的设计和卓越的性能，让这款轴承备受青睐它的抗剪切性能，确保了它的结构稳定性 先进的生产工艺，打造出了这款性能卓越的轴承品质永相随转动的艺术,八零动力SKF超精密角接触球轴承P4级品种全，价格优，质量有保证！
